Waveshare 7.5 inch E-Paper Display Hat V2 800x480 3.3v/5v E-Ink Screen SPI Interface for Raspberry Pi Jetson Nano STM32

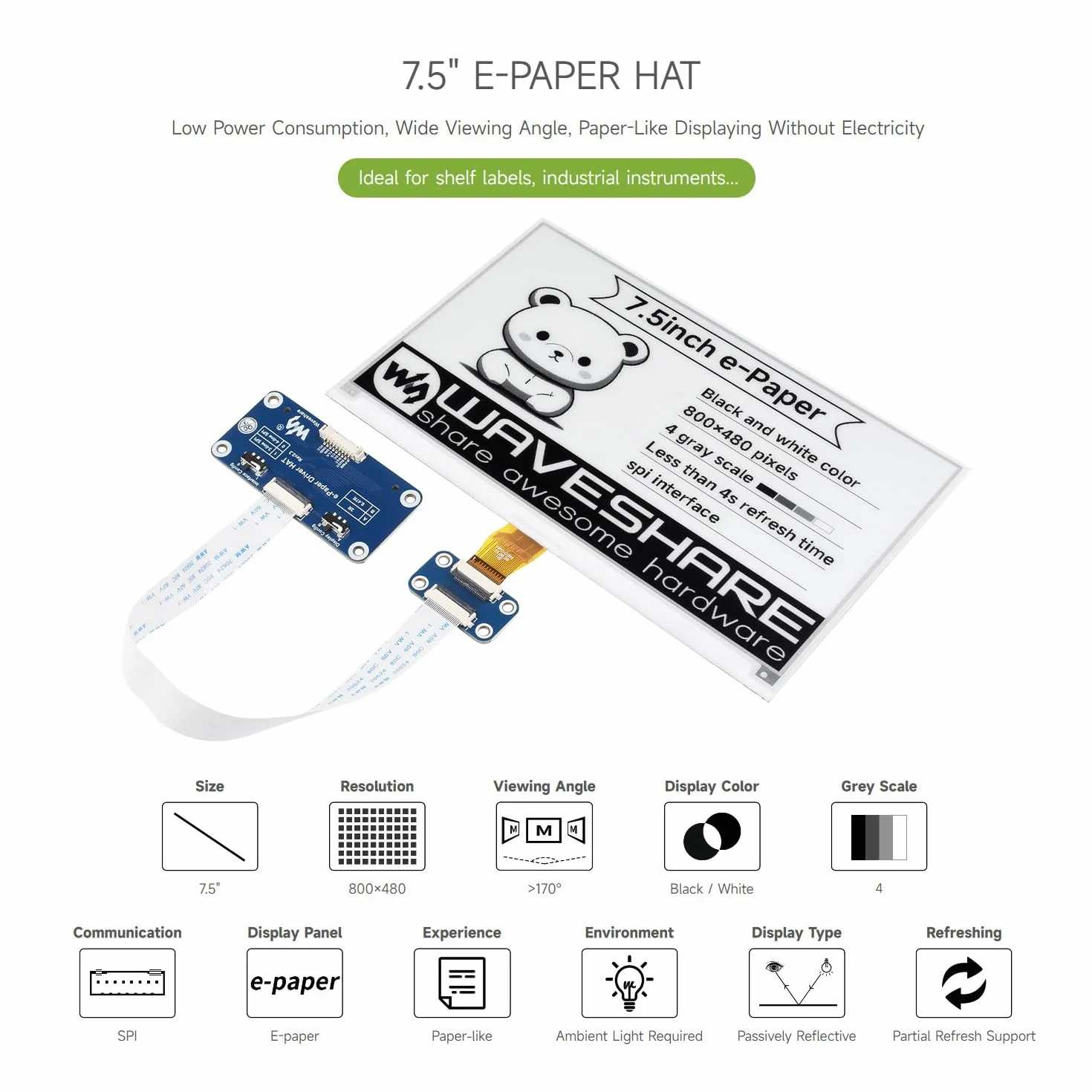

- This is an E-Ink display HAT for Raspberry Pi, 7.5inch, 800×480 resolution, with embedded controller, communicating via SPI interface. Note: Version 2 please use corresponding demo code
- Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.
- No backlight, keeps displaying last content for a long time even when power down.Ultra low power consumption, basically power is only required for refreshing

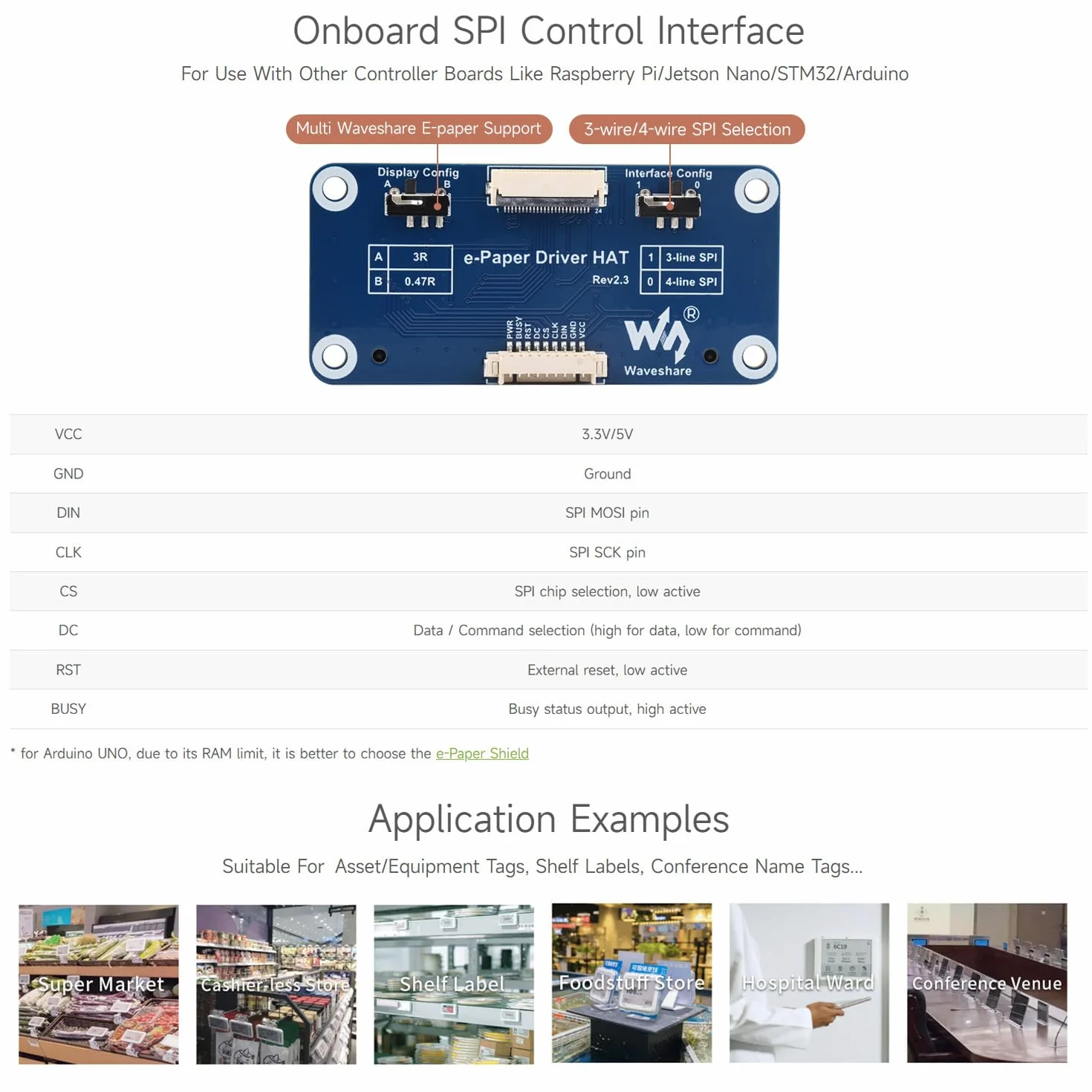

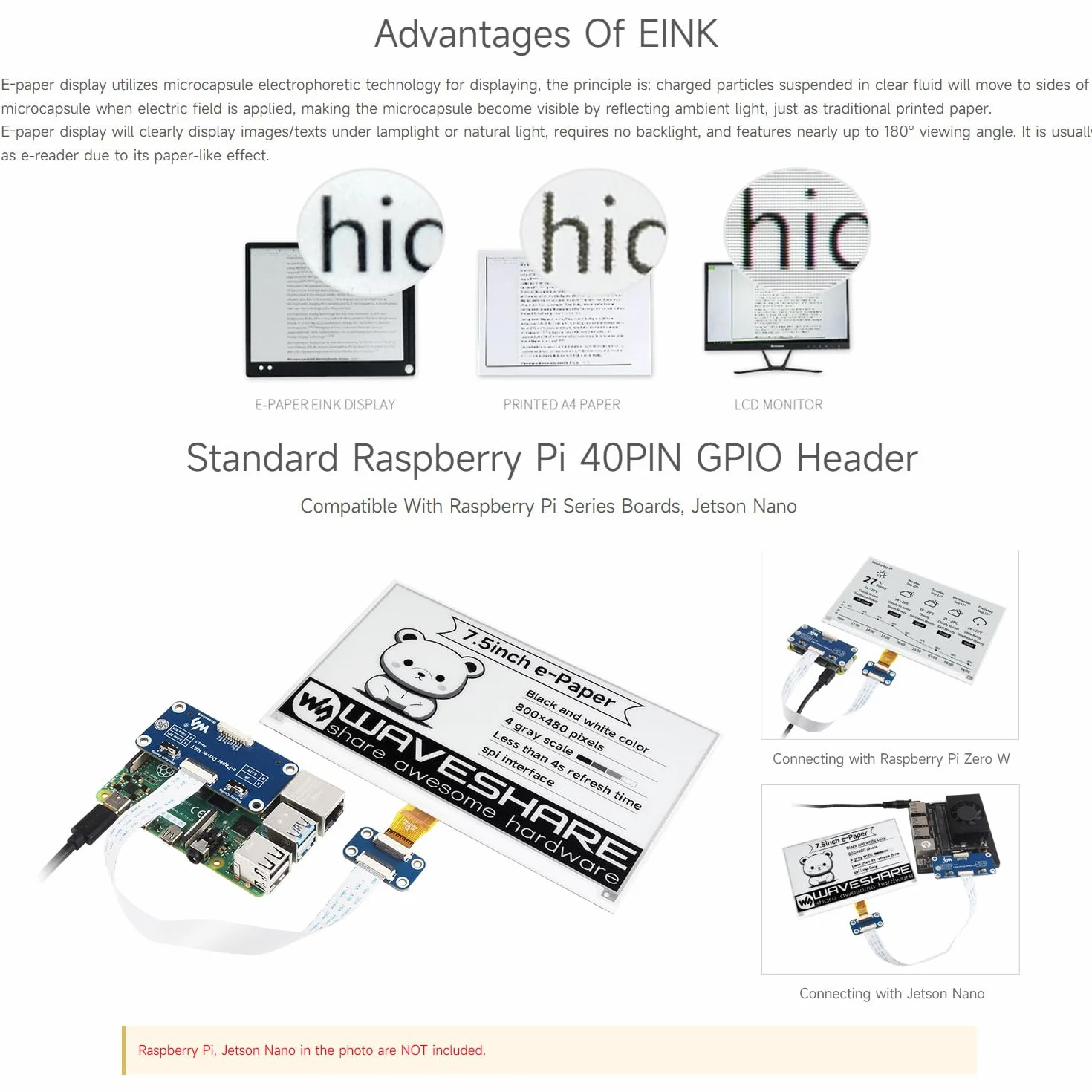

- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano. SPI interface, for connecting with other controller boards like Raspberry/Arduino/Nucleo, etc.
- Onboard voltage translator, compatible with 3.3V/5V MCUs. Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32). Compatible with Raspberry Pi 2B/3B/3B+/Zero/Zero W, Jetson Nano; SPI interface, for connecting with other controller boards like Raspberry/Arduino/Nucleo, etc.
