Waveshare 1.5inch RGB OLED Display Module 128x128 16-bit SPI
€7.99
€31.99
Save 75%
🔥 people are purchasing this right now!
30-Day Risk-Free Returns & Money-Back Guarantee
⚡ Low Stock: Only items left!
Successfully added to your bag!
Product Overview

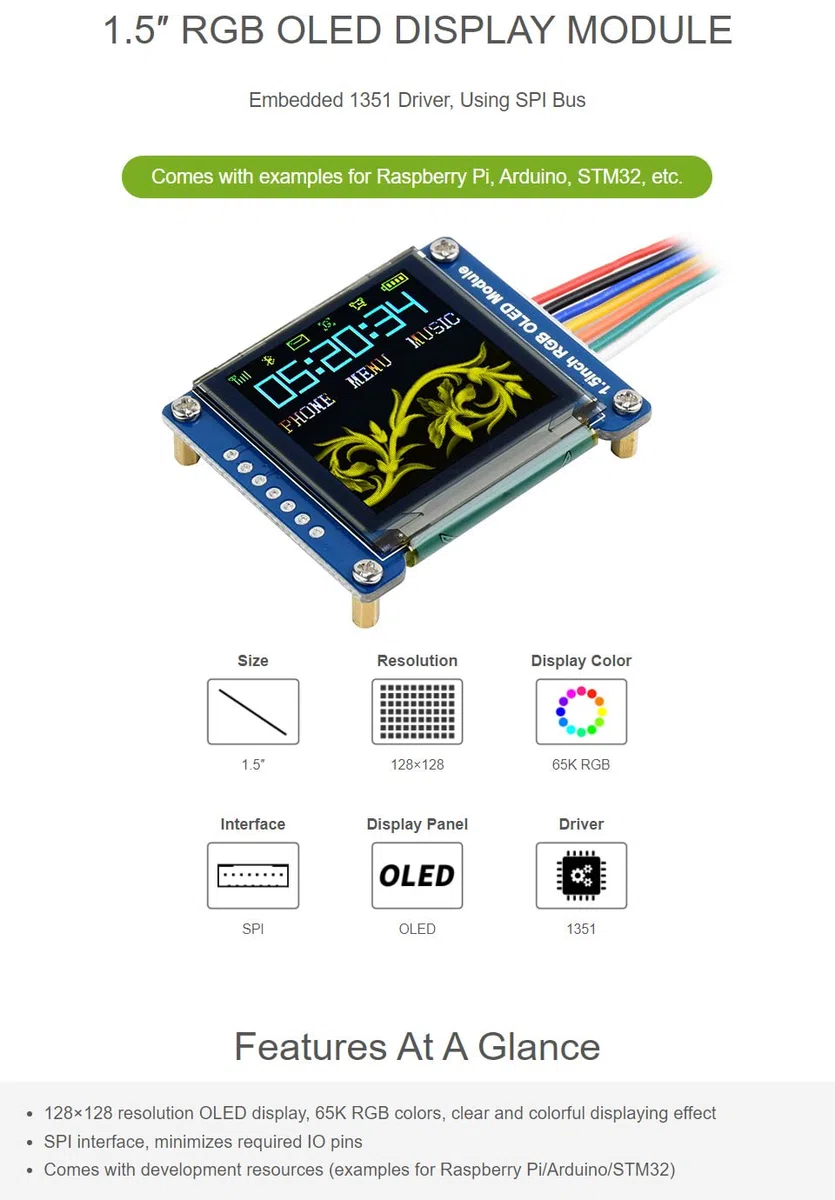

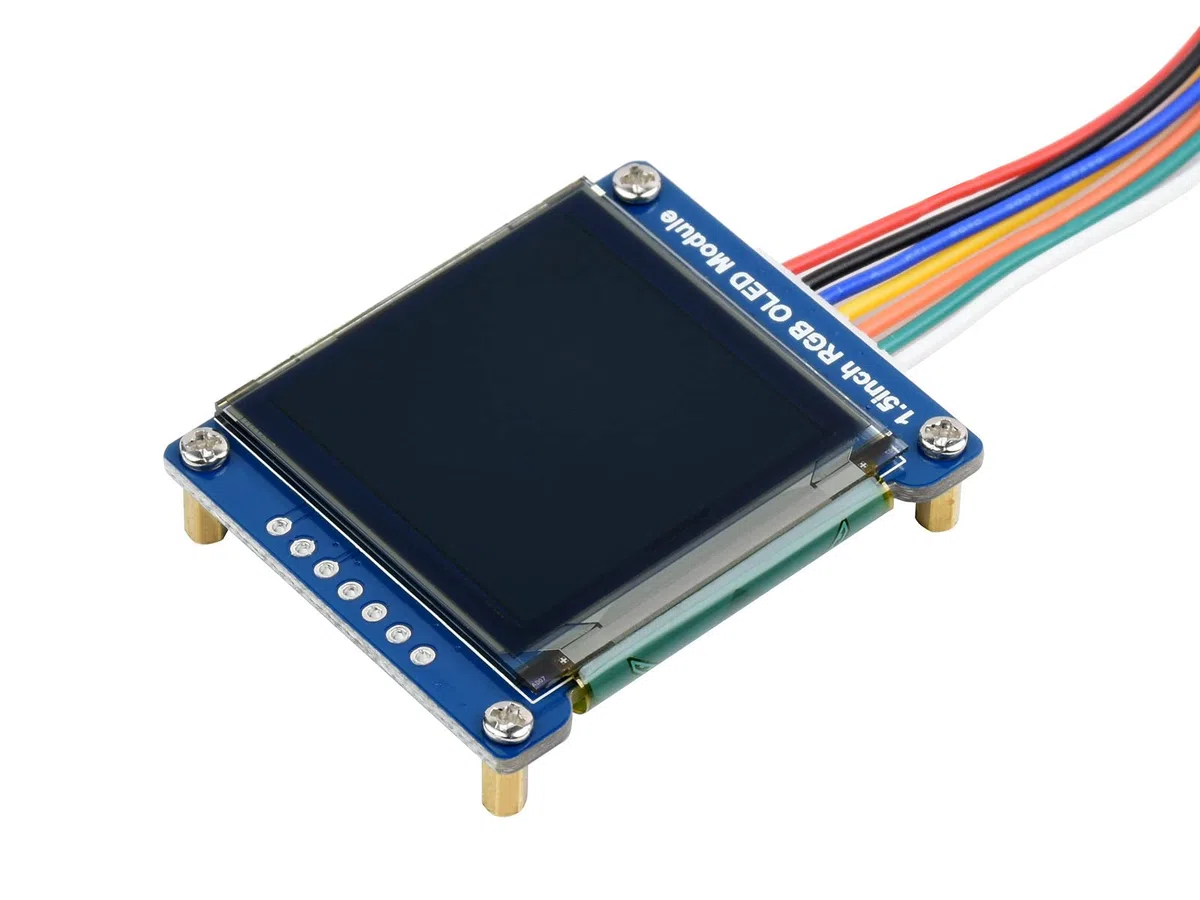

- This is a general RGB OLED display Module, 1.5inch diagonal, 128x128 pixels, 16-bit high color (65K colors), with embedded controller, communicating via SPI interface.
- 128x128 high resolution, 65K colors, clearly displays colorful images
- Supports 4-wire SPI OR 3-wire SPI interface, configured via onboard resistor

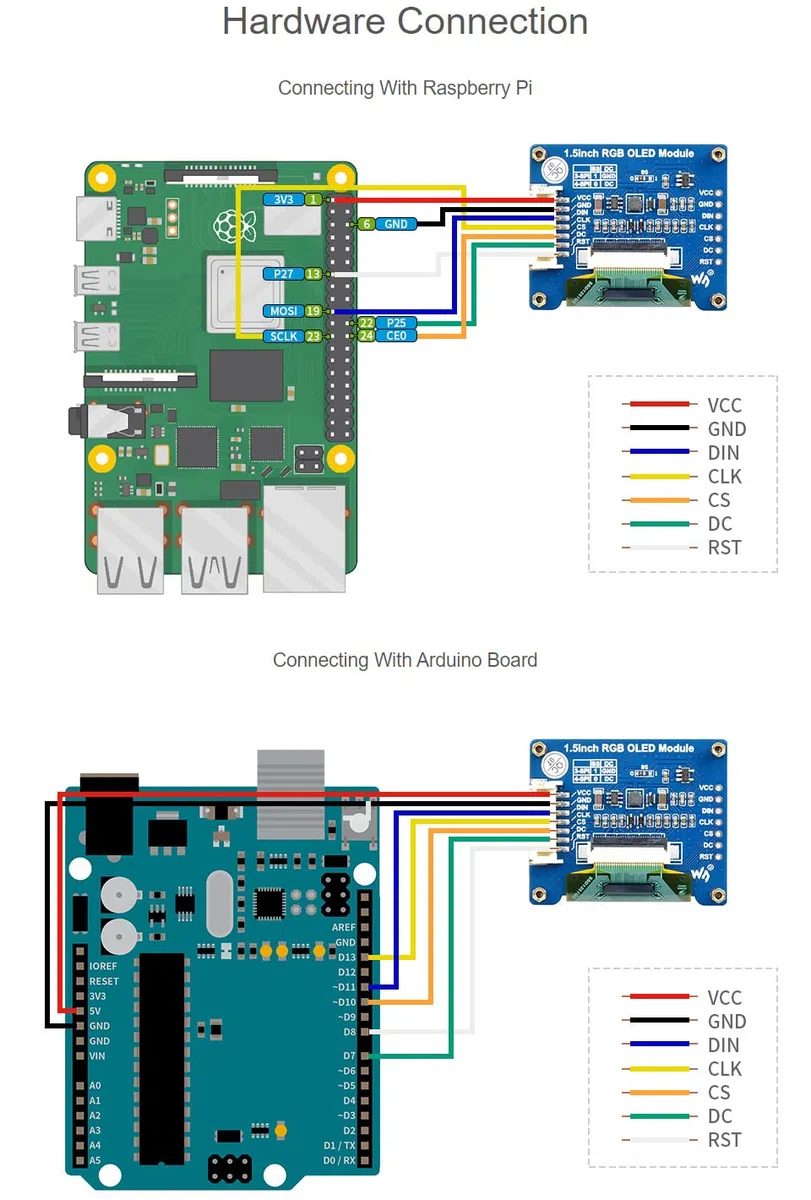

- Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

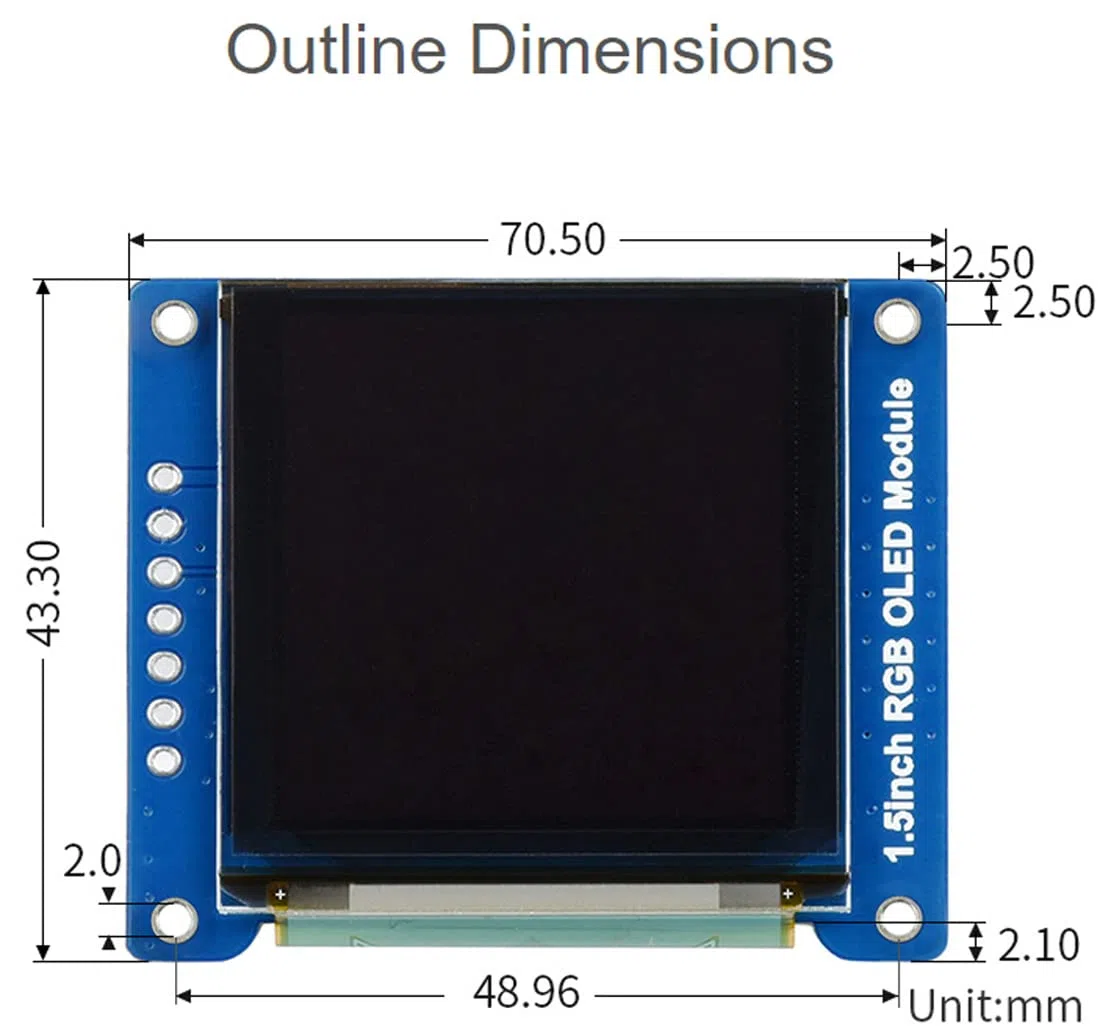

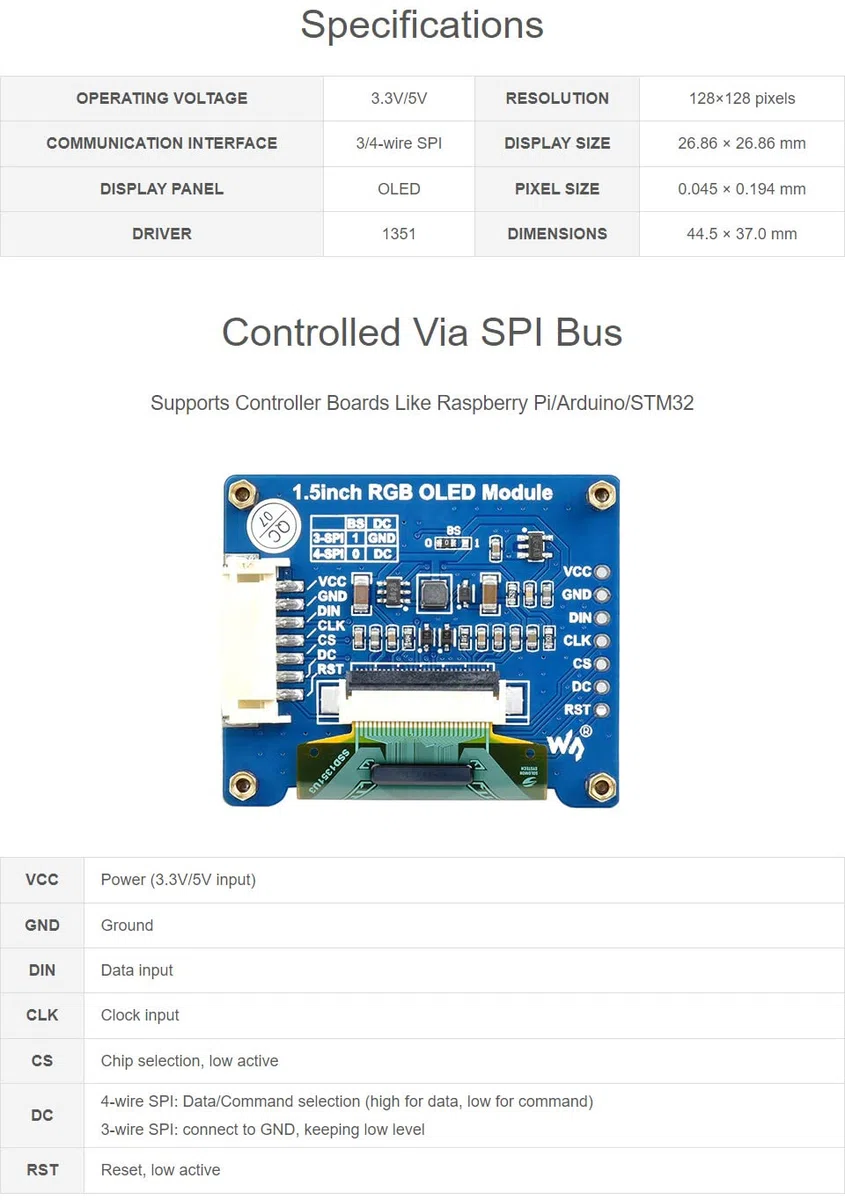

- Driver: 1351; Interface: 4-wire SPI, 3-wire SPI; Display color: RGB, 65K colors; Resolution: 128x128; Viewing angle: >160° Operating voltage: 3.3V / 5V; Dimension: 44.5 x 37 (mm)
