Geekworm X1004 Dual M.2 NVMe SSD Shield PCIe Peripheral Board for Raspberry Pi 5
Product Overview
Marke: Geekworm
Modellname: X1004
CPU-Modell: None
Konnektivitätstechnologie: Ethernet, USB, WLAN
Enthaltene Komponenten: 1 x X1004 PCIe to M2 NVMe Shield
- 【Compatibility】only for Raspberry Pi 5 16GB / 8GB / 4GB (NOT included)

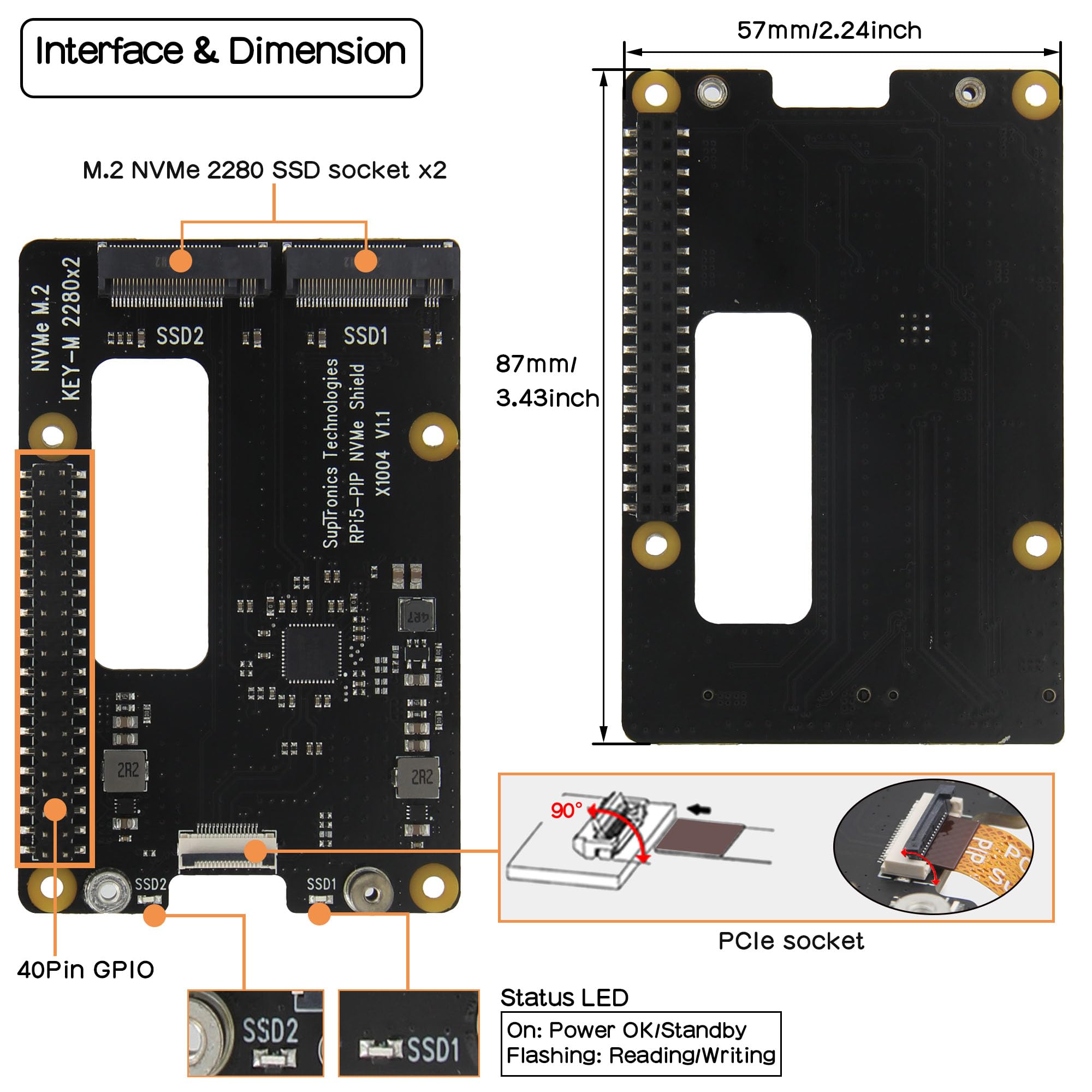

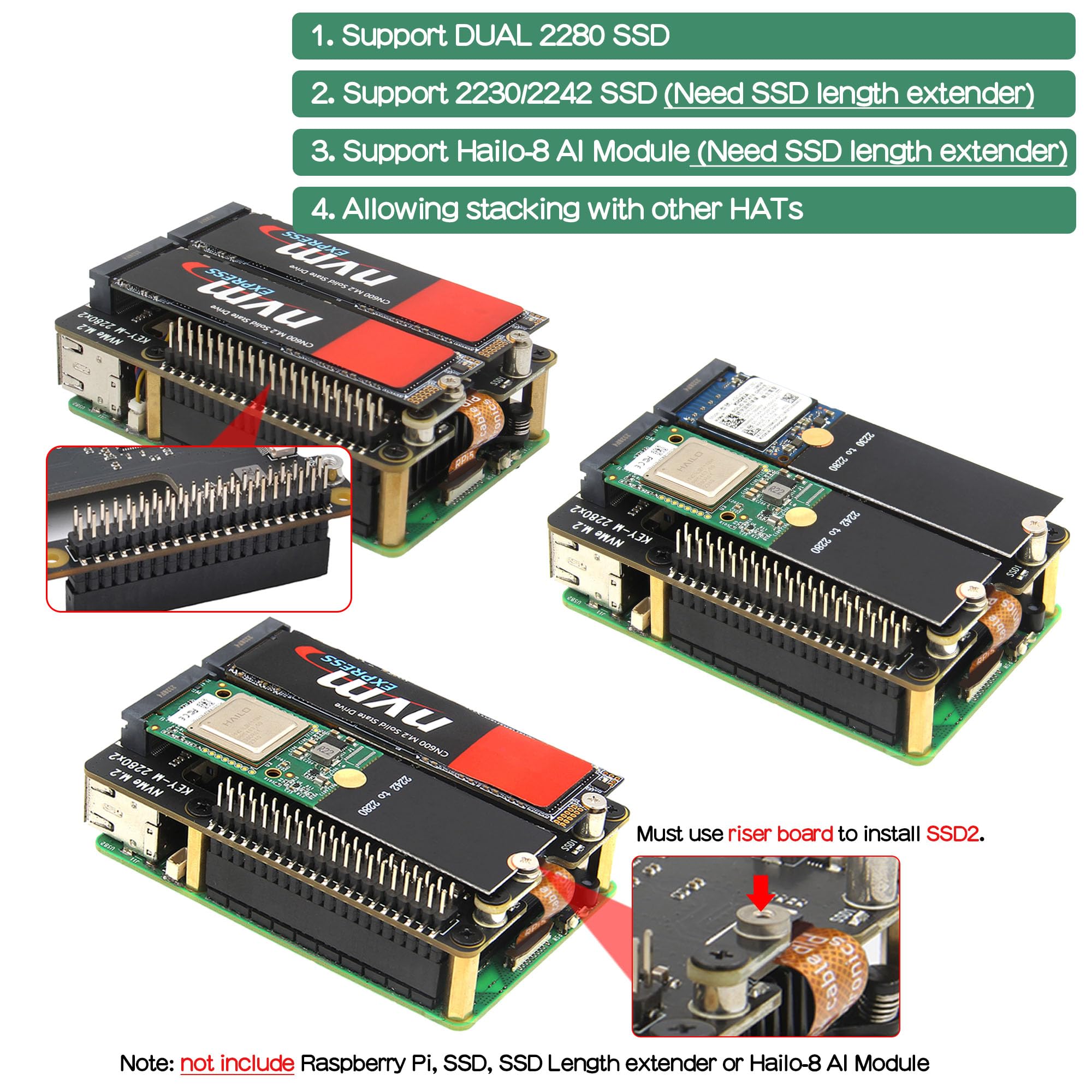

- 【Support Dual M2 SSD】Compatible with M.2 KEY-M NVMe SSD 2280 (NOT included)

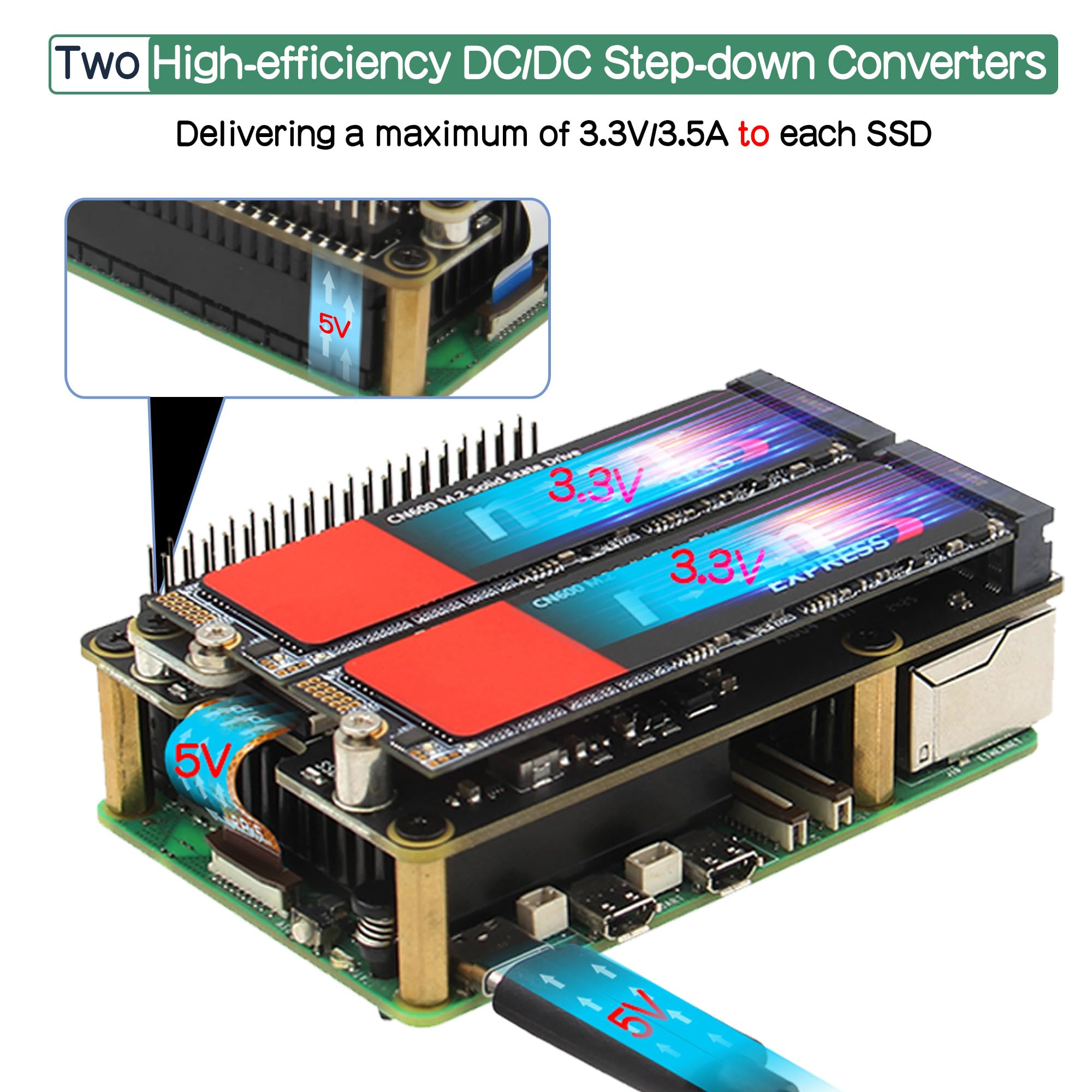

- 【How to Power】5Vdc +/-5%, 5A via Raspberry Pi 5. Recommend to use Geekworm PD 27W power adapter (ASIN: B0CP8SRXSC); or GaN PD 27W power supply (ASIN: B0CZCZF2QV)
- 【Support NVMe Boot】X1004 now supports NVMe boot with the latest eeprom (2024/05/17 version)
- 【Packing List】1 x X1004 PCIe to M2 NVMe Shield, 1x Accessories Pack
- 【Matching Case (NOT included)】Refer to P579-V2 Case (ASIN: B0CRB3DT5M), or P579-V2 Case with active cooler (ASIN: B0CT4P893Q)
- 【Note】Since X1004 is using ASMedia ASM1182e PCIe switch, it can't support PCIe Gen 3 speed, so even though we forced to turn on PCIe Gen 3.0 setting in Raspberry Pi 5, it is limited by ASMedia ASM1182e PCIe switch. speed is still PCIe Gen 2.0 speed.
